Traxon

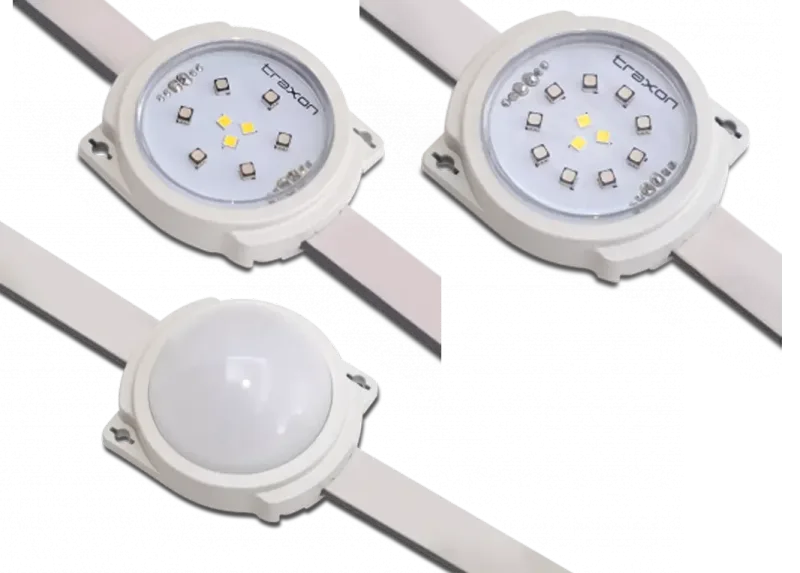

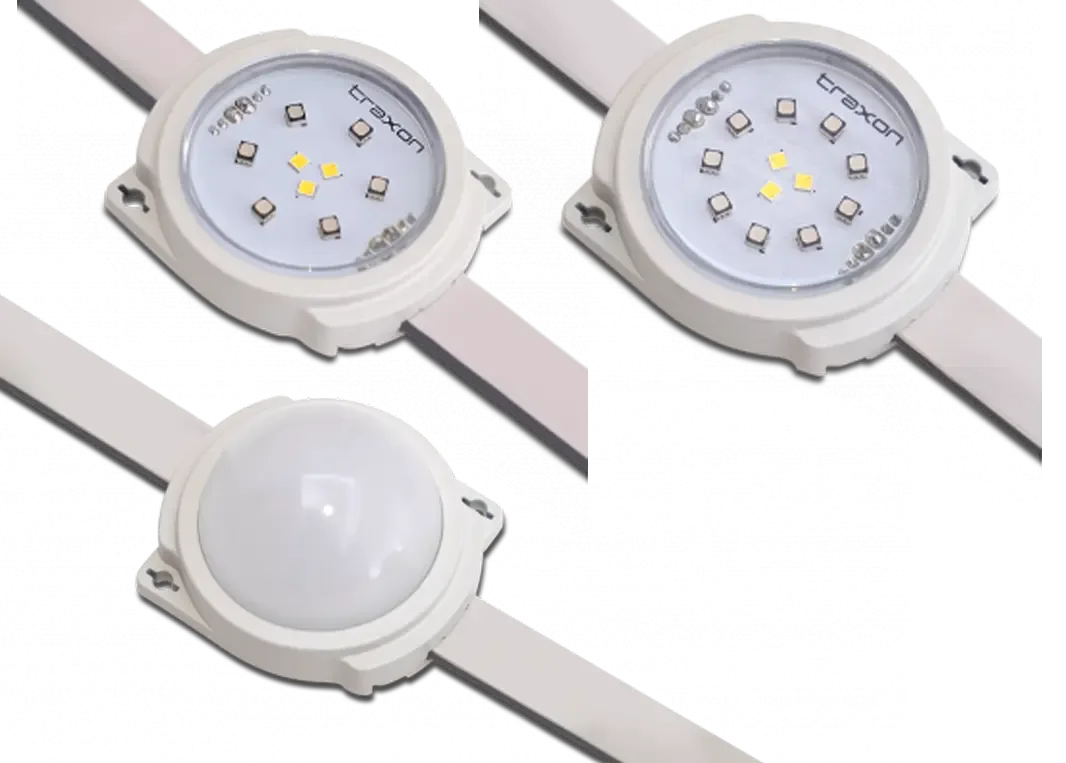

Allegro Dot M & L RGB/RGBW
Façade SolutionsNext-generation intelligent media dot in RGB or RGBW, in M and L sizes with clear or diffused cover.
Dots on a flexible cable with customizable pitch (150 mm standard, up to 4 m) — for media façades and large-scale dot installations; IP66 / IP67.
Technical specifications
| Light source | 6 RGB (+3 W) LED / dot |
|---|---|
| Colour | RGB / RGBW (6500K) |
| Beam angle | 110° / 150° |
| Luminous flux | 46–147 lm |
| Pixel pitch | 150–4000 mm |
| Dimensions | Ø68 × 60 × 17 mm |
| Protection rating | IP66 / IP67 |
| Operating temperature | −30 … +60 °C |
