Traxon

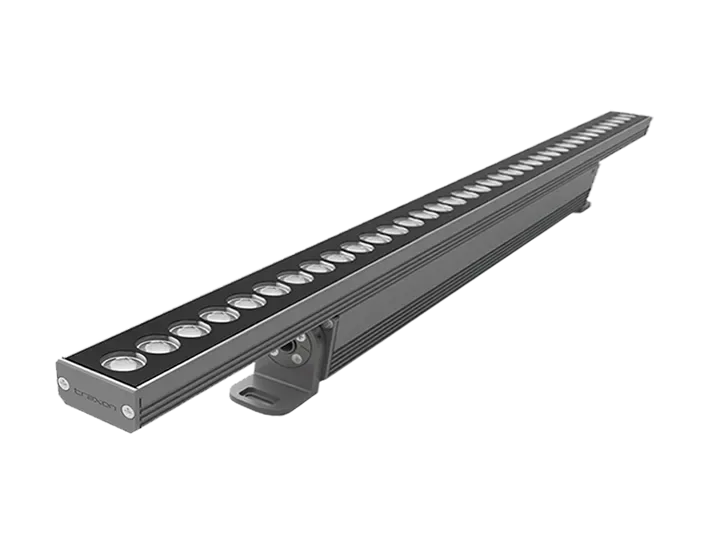

Allegro Linear AC RGBW
Outdoor ProductsSlim-profile, mains-powered high-brightness linear luminaire with RGB colours plus white (3000K), in four lengths from 320 to 1215 mm and with…
Slim-profile, mains-powered high-brightness linear luminaire with RGB colours plus white (3000K), in four lengths from 320 to 1215 mm and with various optics. DMX512 control with RDM; daisy-chained for long runs on façades — IP66 and suitable for coastal environments.
Technical specifications
| Colour | RGBW (3000K) |
|---|---|
| Beam angle | 10°, 40°, 60° × 10°, 60° × 30° |
| Luminous flux | 778 lm (320 mm) |
| Power consumption | 15 W / 28 W / 41 W / 55 W |
| Supply voltage | 220–240 V AC |
| Protection rating | IP66 |
| Lengths | 320 / 615 / 915 / 1215 mm |
| Control | DMX512 / RDM |
| Lumen maintenance | L70 80000 h |
| Operating temperature | −30 … +50 °C |
