e:cue

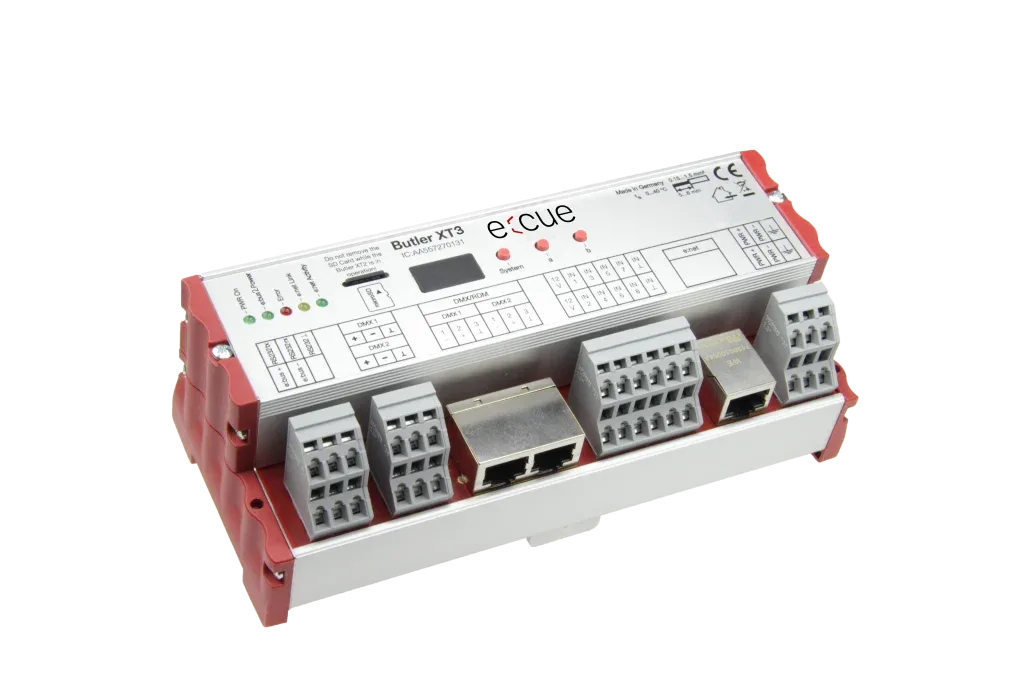

Butler XT3
Output DevicesDMX/RDM engine for standalone operation: replays lighting shows programmed in e:cue LAS.
Shows are uploaded from a PC running LAS and looped; it can also run as a DMX/RDM device controlled by another e:cue engine.
- Controls up to 1024 DMX/RDM channels
- Up to 8 Glass Touch GT12X terminals via e:bus2 (not compatible with the older e:bus)
- RDM for bidirectional communication
- Real-time and astronomical clock
- Standalone configuration via web browser
- RS-232 serial input for third-party systems
- Eight freely configurable, optically isolated digital inputs
- MicroSD card for shows and configuration (included)
Technical specifications
| Dimensions | 177 × 60 × 75 mm |
|---|---|
| Weight | 0.4 kg |
| Power consumption | max. 3.5 W |
| Protection rating | IP20 |
| Operating temperature | 0 … 40 °C |
| Channels | 1024 DMX/RDM |
