e:cue

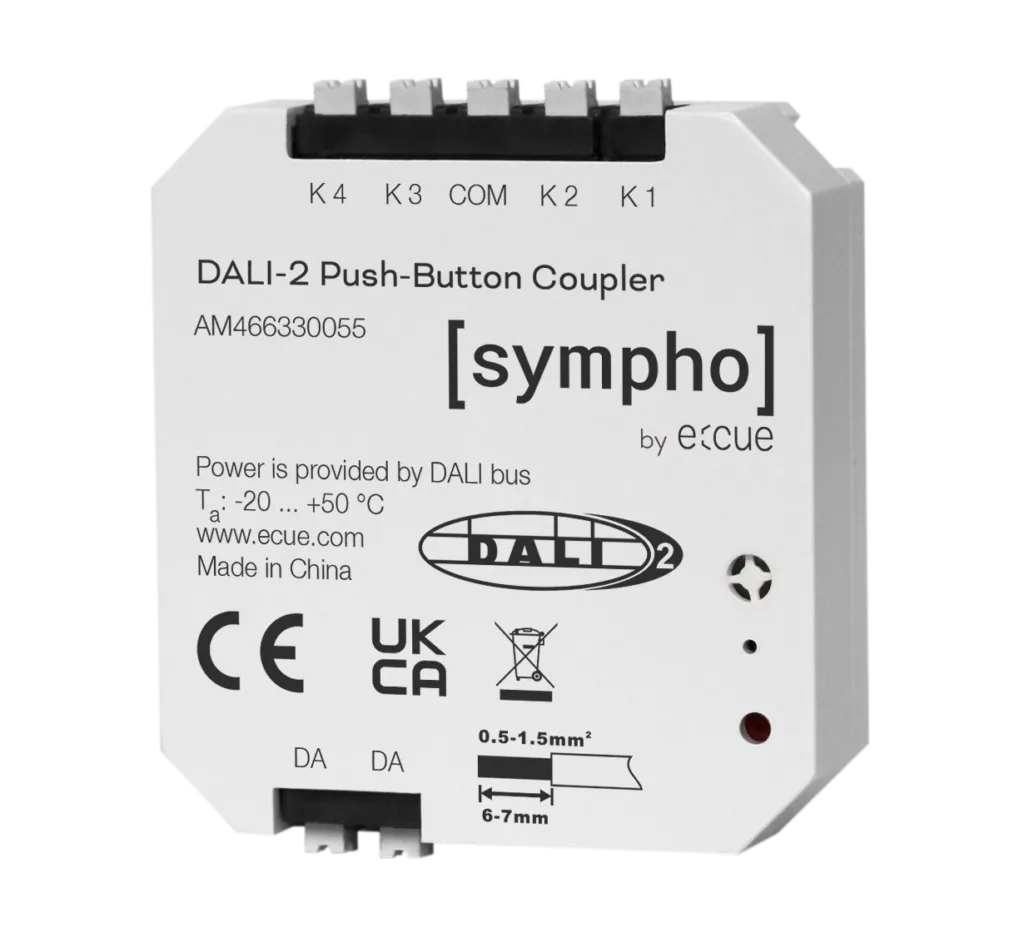

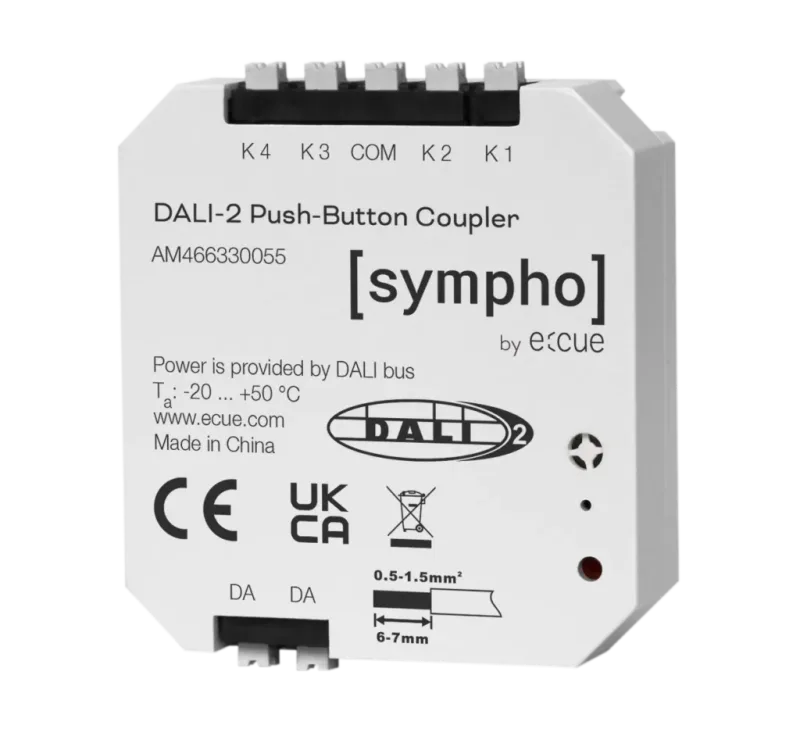

DALI-2 Push-Button Coupler
Control UnitFour-channel DALI-2 push-button coupler: brings existing wall switches into a DALI lighting system.
Four DALI-2 push-button instances for straightforward control in any DALI-2 compliant installation; fits in a flush-mounted box.
- 4 × DALI-2 push-button instances
- Complies with IEC 62386-101, -103 and -301
- Multi-master capable: several modules on one DALI line
- Works with DALI-2 central control units
Technical specifications
| Dimensions | 49.8 × 43 × 15.1 mm |
|---|---|
| Weight | 40 g |
| Supply voltage | 9.5–22.5 V DC |
| Operating temperature | −20 … +50 °C |
| Channels | 4 |
| Control | DALI-2 |
