e:cue

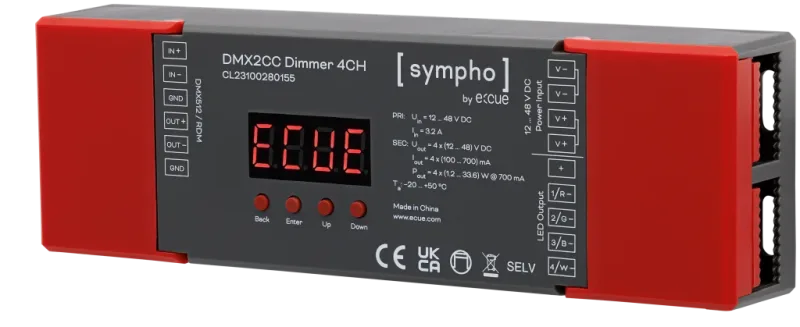

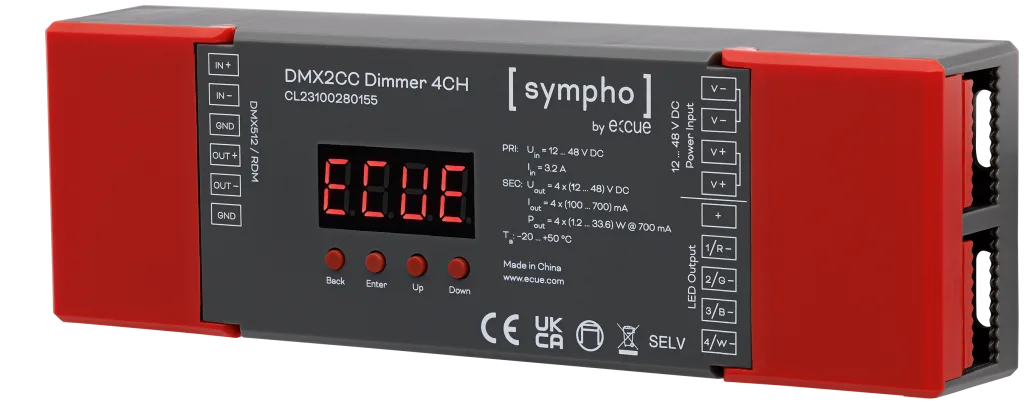

DMX2CC Dimmer 4CH
Output DevicesFour-channel DMX/RDM constant-current dimmer (common anode) for LED lighting.
Wide 12–48 V DC input and output current selectable from 100 to 700 mA in 10 mA steps — adapts to many LED set-ups.
- Output current 100–700 mA, set on the device or via RDM
- DMX addressing via buttons, RDM or auto-addressing
- DMX footprint 1 to 4 channels
- Adjustable dimming curve (gamma 0.1–9.9)
- Isolated, surge-protected DMX input and output
- Built-in programmes and standalone mode
Technical specifications
| Dimensions | 170 × 53.4 × 28 mm |
|---|---|
| Weight | 170 g |
| Supply voltage | 12–48 V DC |
| Output | 100–700 mA |
| Channels | 4 |
| Operating temperature | −20 … 50 °C |
| Control | DMX / RDM |
