e:cue

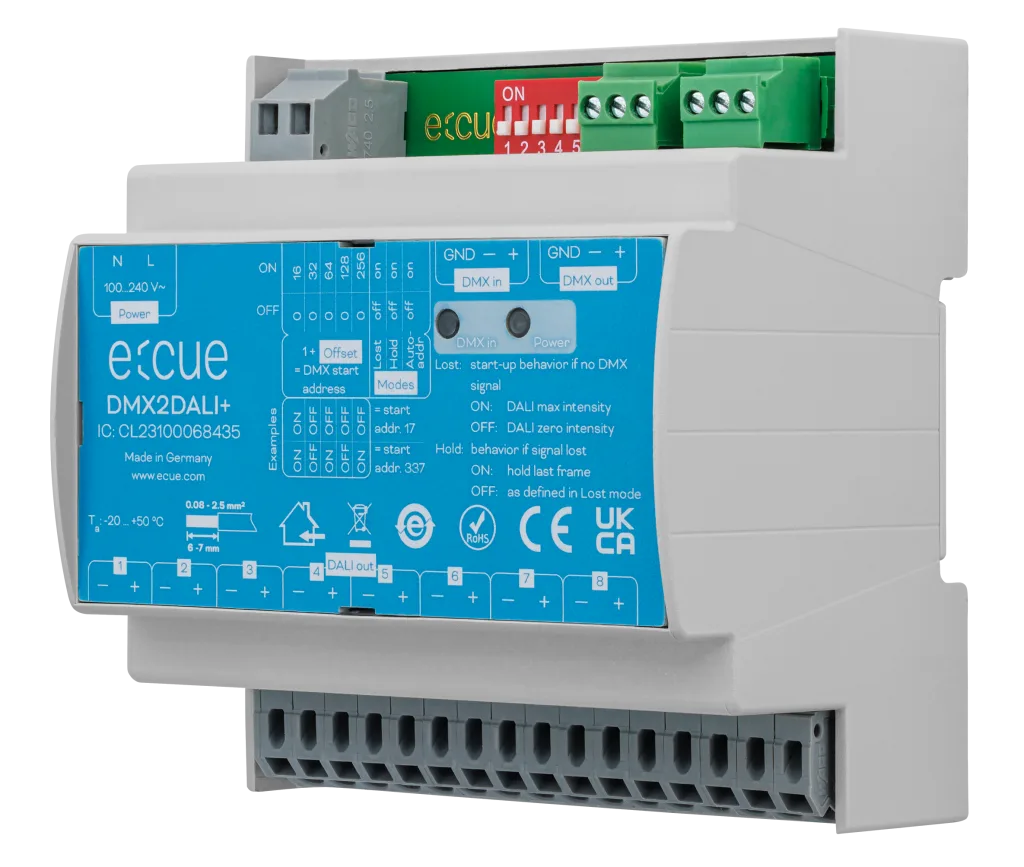

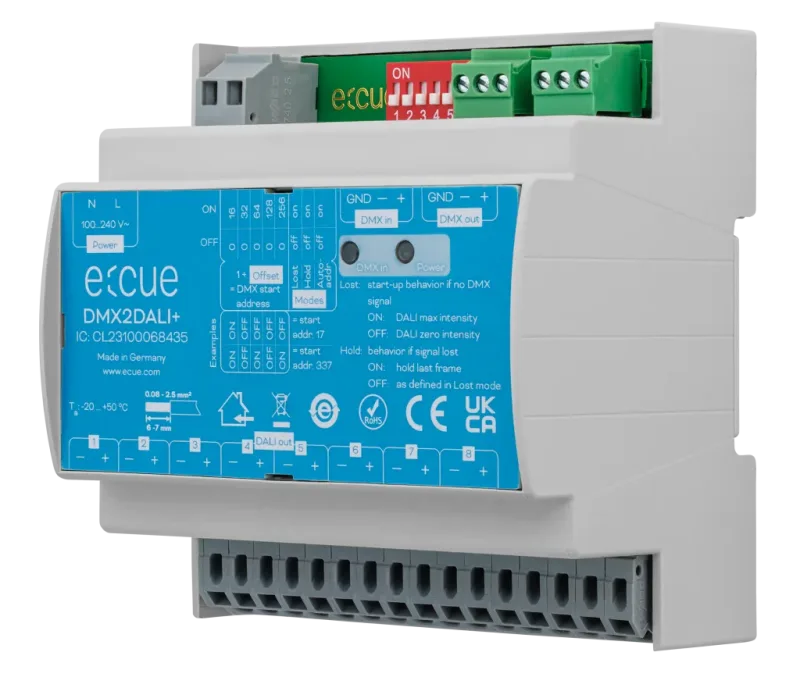

DMX2DALI+
ConverterDMX-to-DALI converter: controls DALI ballasts and dimmers from a DMX controller.
Eight consecutive DMX channels drive eight DALI broadcast outputs with up to 64 ballasts each — up to 512 ballasts per unit.
- 8 DALI broadcast outputs from 8 DMX512 channels
- Up to 64 ballasts per output (512 in total)
- Single 100–240 V AC supply
- Manual and automatic DMX addressing, DIP-switch configuration
- Configurable DALI output on DMX signal loss
- DIN rail mounting
Technical specifications
| Dimensions | 88 × 90 × 63 mm |
|---|---|
| Weight | 180 g |
| Supply voltage | 100–240 V AC |
| Protection rating | IP20 |
| Operating temperature | −20 … 50 °C |
| Channels | 8 DMX → 8 DALI |
