OSRAM

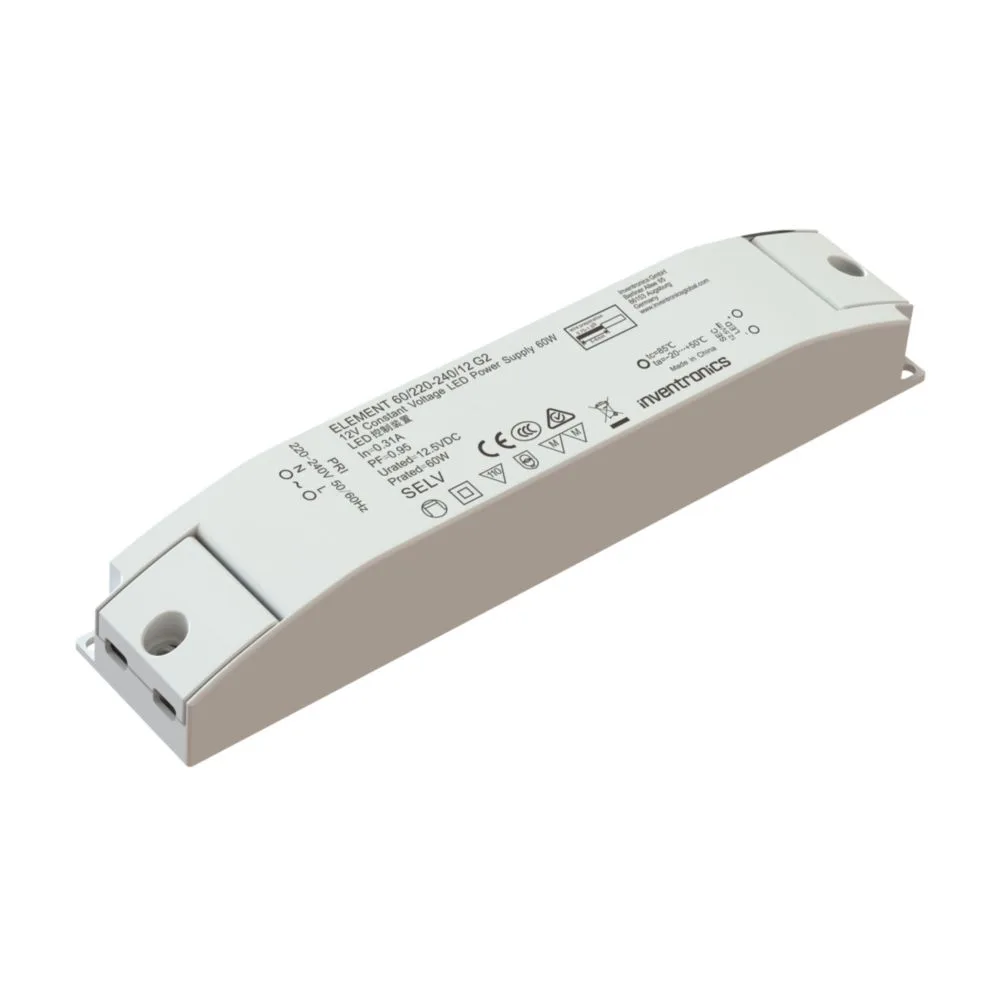

ELEMENT 60/220-240/12 G2
DriversELEMENT G2: non-dimmable 12 V constant-voltage LED power supply, 60 W, in a slim linear housing.
Power supply for 12 V LED strips and modules on 220–240 V mains. High efficiency and low output ripple keep the light steady; the class II design suits a wide range of luminaires.
- Power factor > 0.95 at full load
- Total harmonic distortion (THD) < 15 %
- Output voltage tolerance < 3 %, output ripple < 3 %
- Efficiency up to 91 % across the range
- Lifetime up to 30 000 h at max. tc
- For shelf, cove and under-cabinet lighting and decorative lighting in shops, hotels and restaurants
Technical specifications
| Supply voltage | 220–240 V AC |
|---|---|
| Output | 12.5 V · 60 W |
| Efficiency | 88 % |
| Protection rating | IP20 |
| Dimensions | 200 × 40 × 31 mm |
| Weight | 308 g |
| Operating temperature | −20…+50 °C |
| Lifetime | 30 000 h |
