e:cue

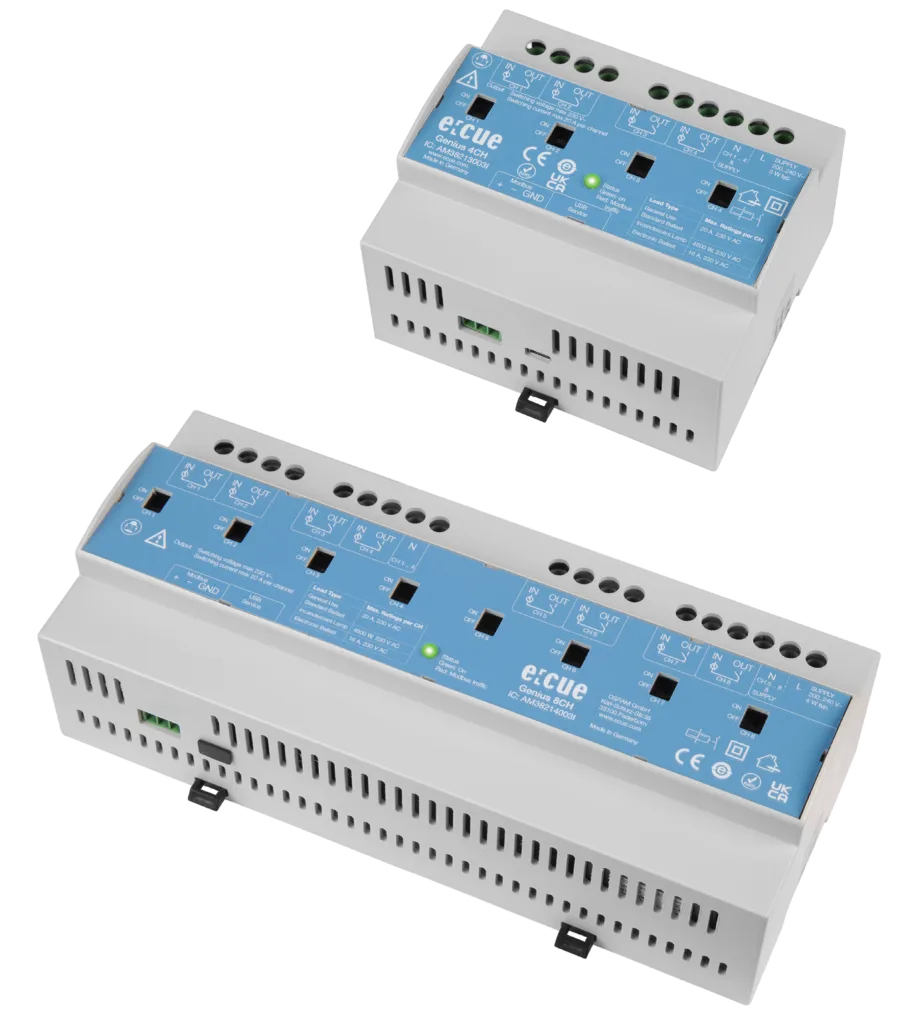

Genius 4CH & 8CH
Output DevicesRelay controller and energy meter in one device: load switching, energy monitoring and power measurement.
Communicates with any third-party system over Modbus RTU / ASCII on RS-485; available with 4 or 8 channels.
- Real-time monitoring of critical installations
- 4 or 8 bistable relay outputs, up to 20 A resistive load at 230 V AC
- Measures voltage, current, power, power factor, energy and frequency
- DIN rail or surface mounting
Technical specifications
| Dimensions | 106.3 × 90.5 × 62 mm |
|---|---|
| Supply voltage | 200–240 V AC |
| Channels | 4 / 8 |
| Operating temperature | −20 … 50 °C |
| Interfaces | RS-485 (Modbus) |
