OSRAM
LF3000I-G1-830-24-03 L1

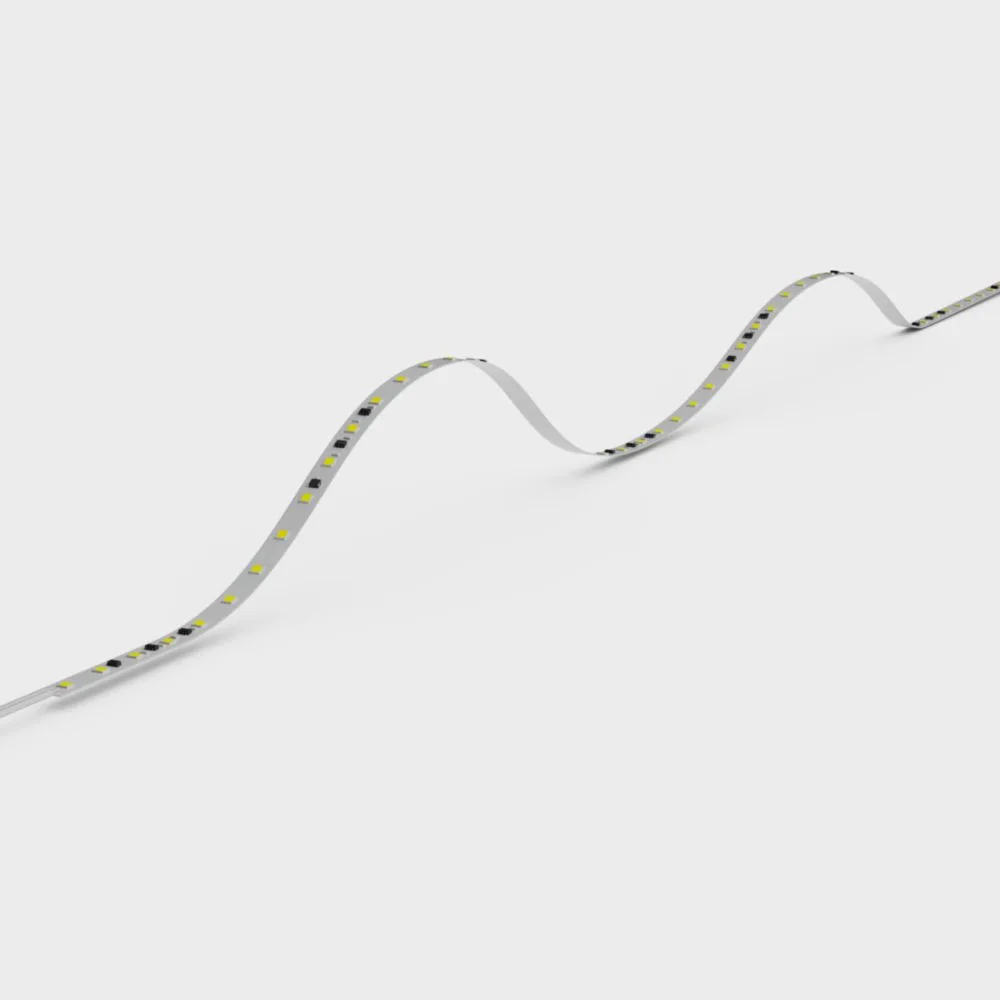

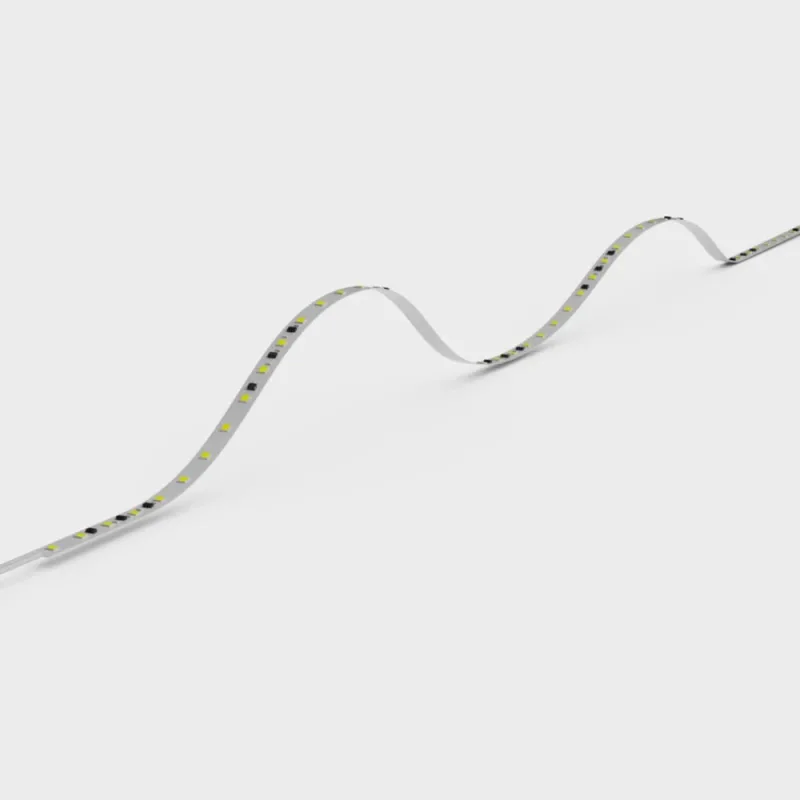

Indoor ProductsLINEARlight FLEX Infinite: flexible, cuttable 24 V LED strip, 3020 lm/m, 3000 K, 3 m reel, IP00.
An even, bright line of light for luminaires and architectural details: colour uniformity better than 2 SDCM along the strip and between strips. Pre-wired for quick plug-and-play installation; the self-adhesive back holds on many smooth surfaces.
- Cuttable every 50 mm; bending radius from 20 mm
- Family up to 4 000 lm/m, wide choice of light colours
- Dimmable with PWM
- Lifetime 60 000 h
- Matches the CONNECTsystem, the SLIM TRACK system and non-isolated OPTOTRONIC drivers
Technical specifications
| Supply voltage | 24 V DC |
|---|---|
| Luminous flux | 3020 lm/m |
| Power consumption | 19.2 W/m |
| Efficacy | 157.3 lm/W |
| Colour | 3000 K |
| Colour rendering (Ra) | 80 |
| Beam angle | 120° |
| Lengths | 3 m |
| Dimensions | 8 × 1.6 mm |
| Cut unit | 50 mm |
| Min. bending radius | 20 mm |
| Protection rating | IP00 |
| Operating temperature | −30…+55 °C |
| Lifetime | 60 000 h |
