OSRAM

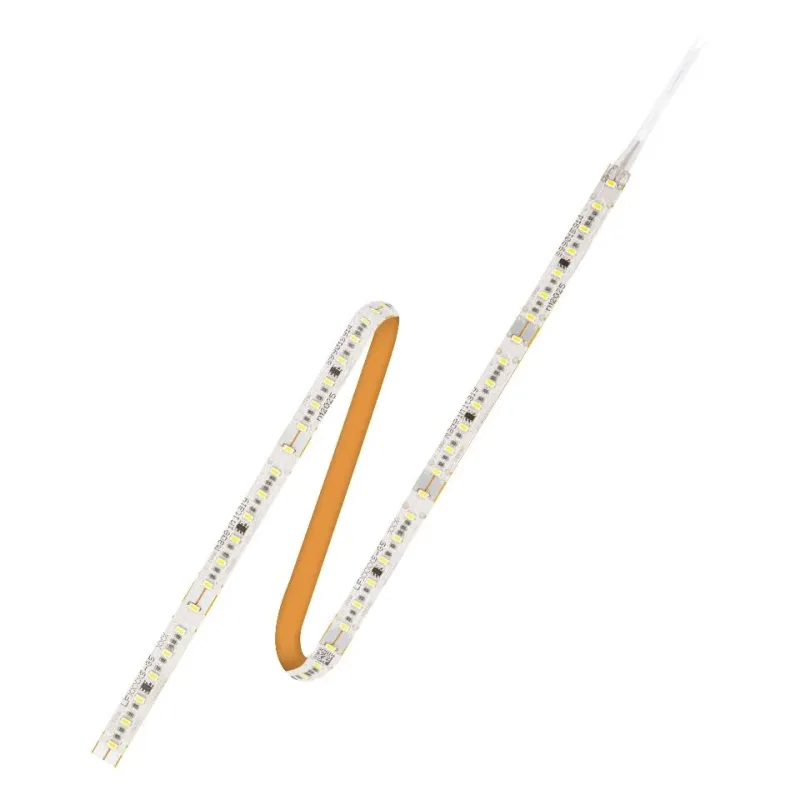

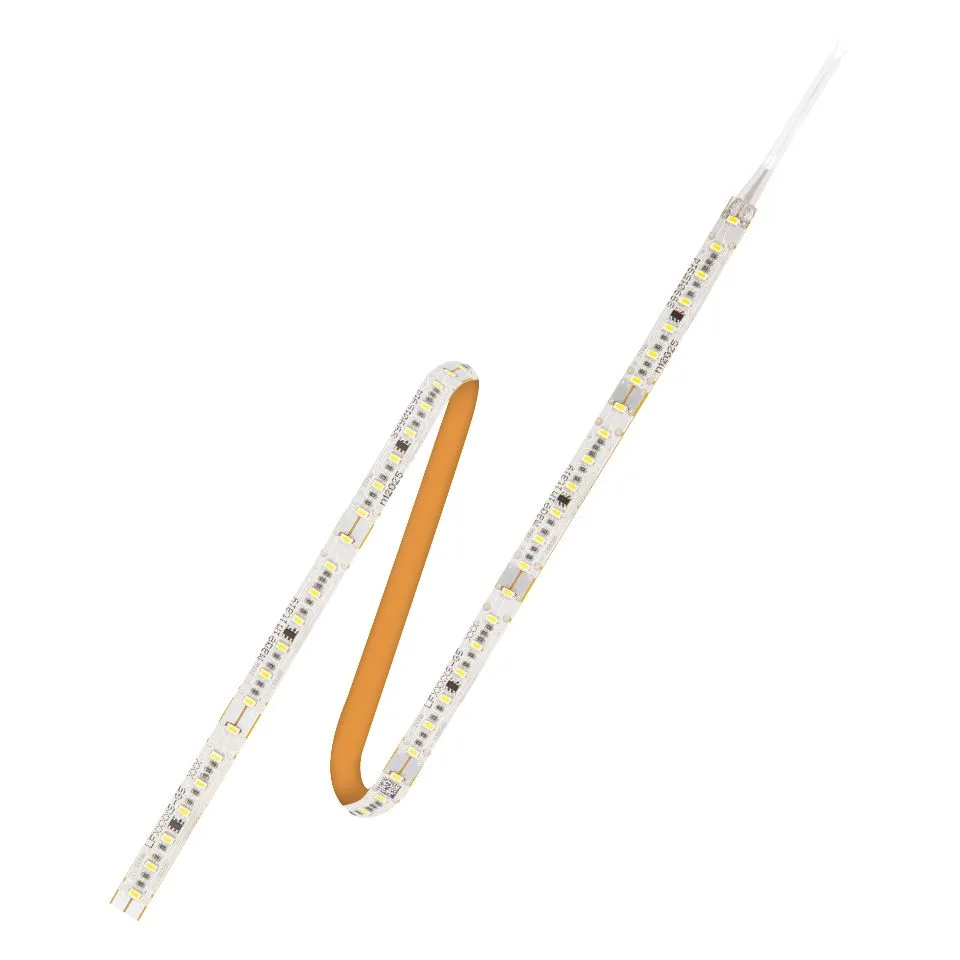

LF800S-G5-830-10 L2
Indoor ProductsLINEARlight FLEX Uniformity G5: 24 V LED strip with constant-current ICs, 810 lm/m, 3000 K, CRI 80, 10 m reel.
Active constant-current regulators keep the luminous flux stable over the full length. Colour uniformity better than 2 SDCM and light stability of typically 1 SDCM after 6 000 h; made from a single reel without solder joints.
- Cuttable every 50 mm; bending radius from 20 mm
- Variants with 800, 1200 and 2000 lm/m and CRI 80+, 90+ and 95+
- Up to 60 000 h L90/B10, tested to IEC 62717
- Protection against accidental miswiring up to 25 V
- PWM dimmable up to 2.5 kHz without audible noise
- Matching aluminium profiles, SLIMCONNECTsystem G2 connectors and OPTOTRONIC 24 V drivers (DALI, DMX, BLE)
Technical specifications
| Supply voltage | 24 V DC |
|---|---|
| Luminous flux | 810 lm/m |
| Power consumption | 6 W/m |
| Efficacy | 135 lm/W |
| Colour | 3000 K |
| Colour rendering (Ra) | 80 |
| Beam angle | 120° |
| Lengths | 10 m |
| Dimensions | 8 × 1.4 mm |
| Cut unit | 50 mm |
| Min. bending radius | 20 mm |
| Protection rating | IP00 |
| Operating temperature | −30…+50 °C |
| Lifetime | 60 000 h |
