OSRAM
LFD1000S-G2-830-04

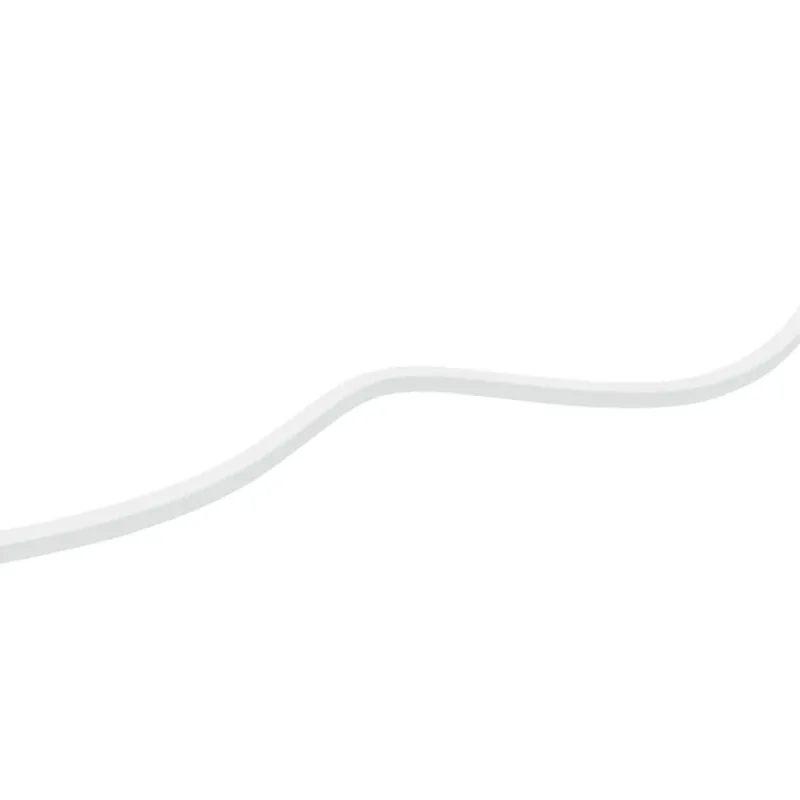

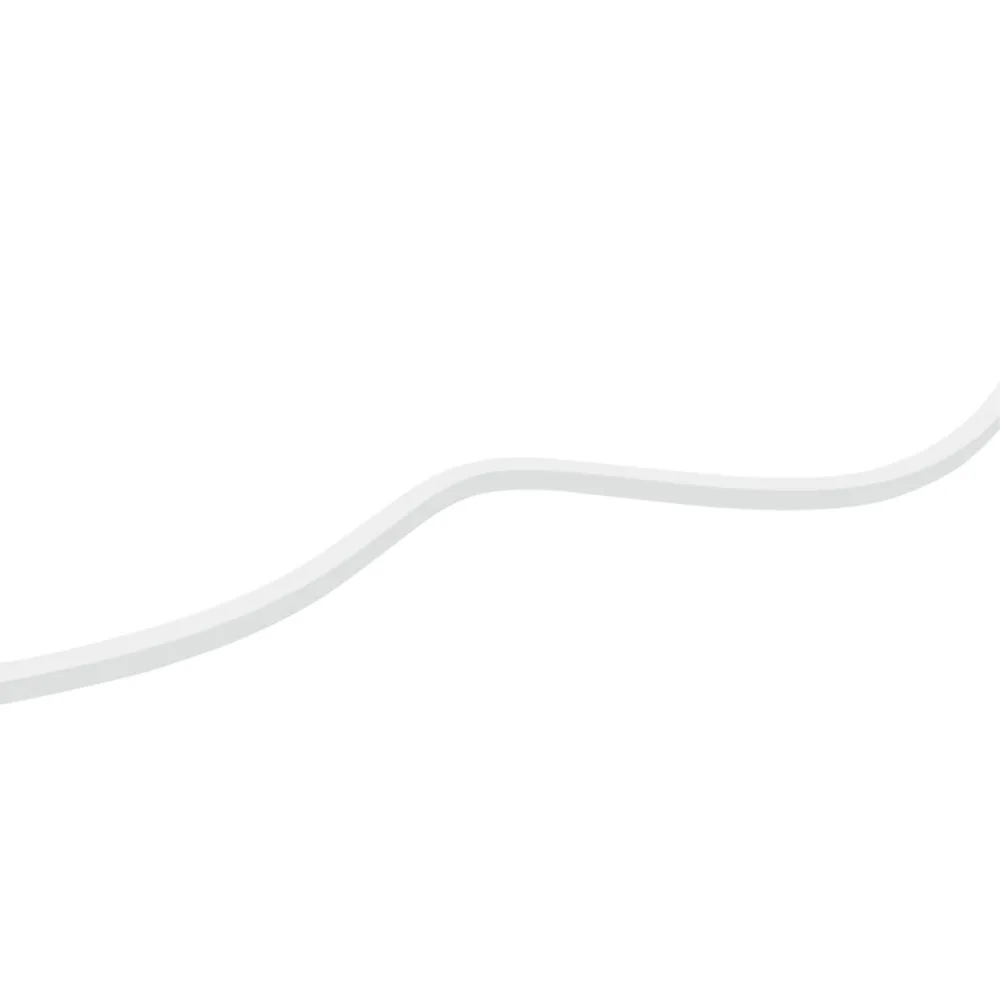

Outdoor ProductsLINEARlight FLEX Diffuse Side LFD1000S: side-emitting, dot-free LED line, 980 lm/m, 3000 K, CRI 80, 4 m, IP66 / IP68.
A flexible, cuttable silicone LED line for luminaires, coves, walls, handrails and signs. Up to 10 m from a single feed; the IP67 connector stops liquids entering the strip through the wires. UV and salt-mist resistant for outdoor use.
- Diffuse light line without visible dots
- Dimmable with PWM; 24 V, recommended with OPTOTRONIC drivers
- Extra-strong self-adhesive back
- Single-piece reel-to-reel production for higher reliability
Technical specifications
| Supply voltage | 24 V DC |
|---|---|
| Luminous flux | 980 lm/m |
| Power consumption | 21 W/m |
| Colour | 3000 K |
| Colour rendering (Ra) | 80 |
| Beam angle | 120° |
| Lengths | 4 m |
| Dimensions | 14.1 × 10.8 mm |
| Cut unit | 50 mm |
| Min. bending radius | 100 mm |
| Protection rating | IP66 / IP68 |
| Operating temperature | −30…+50 °C |
| Lifetime | 60 000 h |
