e:cue

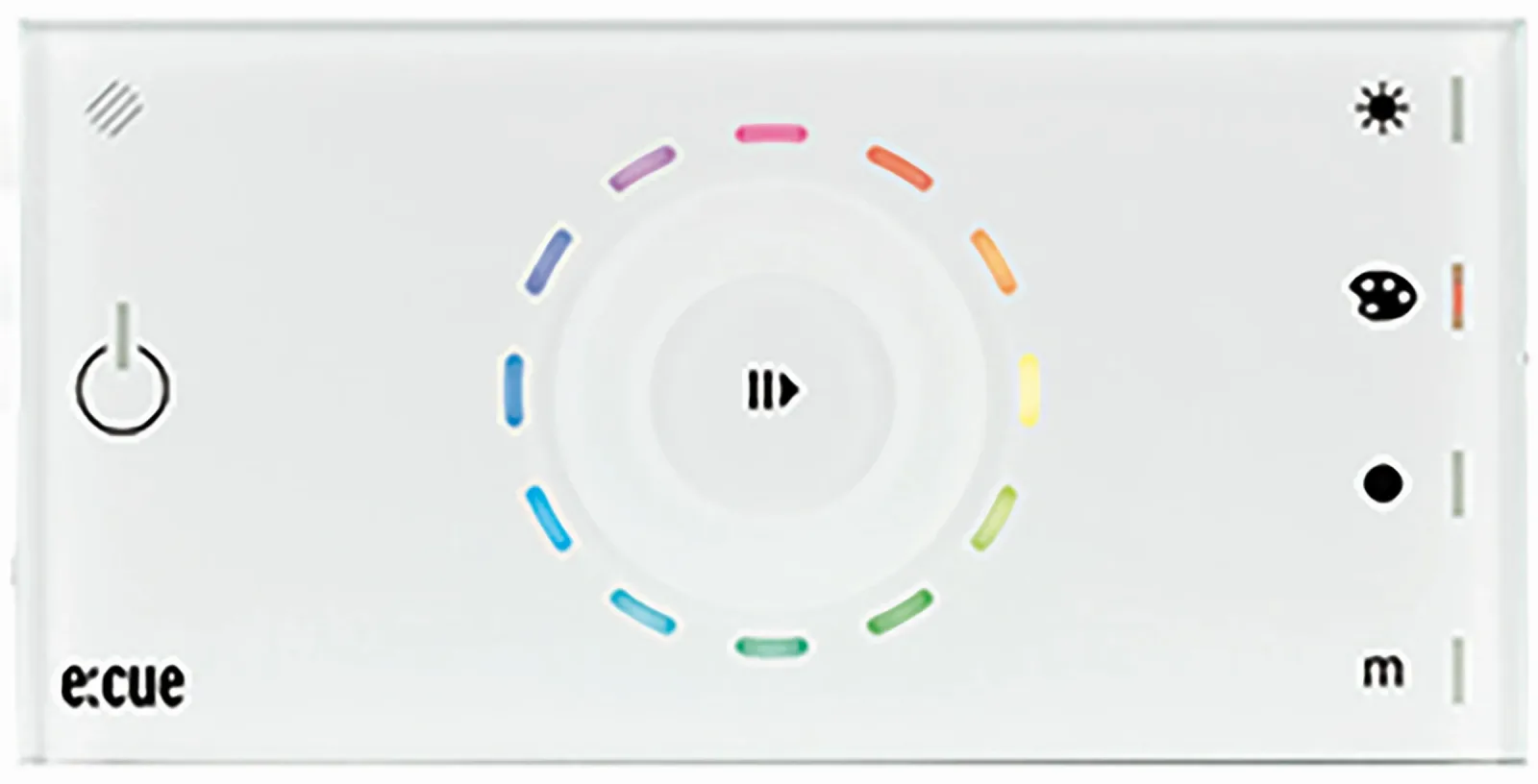

Light-Drive Elite
Control UnitWall-mounted standalone DMX controller with an interactive user interface for dynamic lighting.
End users set up colour-changing effects and control the lighting directly on the device.
- 512 DMX output channels (RGB)
- 4 mode keys: intensity, colour, white and memory
- 4 user memory slots
- Touch wheel with 12 RGB LEDs
- Built-in IR receiver for remote control
Technical specifications
| Dimensions | 160 × 80 × 11 mm |
|---|---|
| Weight | 0.3 kg |
| Supply voltage | 24 V DC |
| Protection rating | IP20 |
| Operating temperature | 0 … 40 °C |
| Channels | 512 DMX |
