Traxon

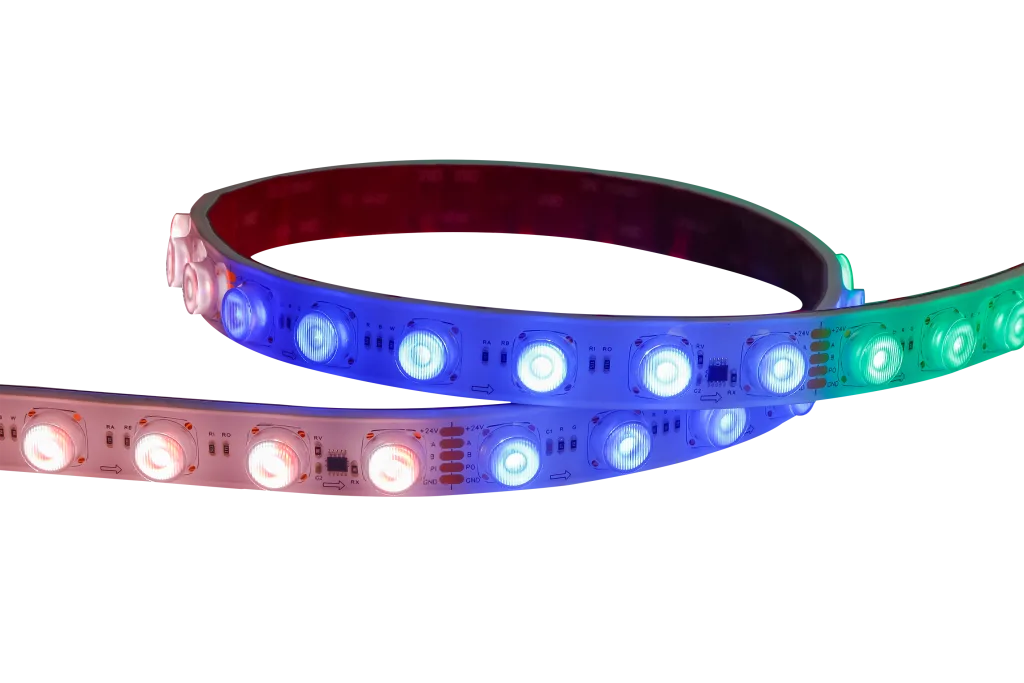

Ribbon Plus Graze TB
Outdoor ProductsTop-bending, pixel-controlled LED strip with graze optics.
Bends to the top with a minimum 150 mm radius; 167 mm pixel pitch, DMX control.
- 167 mm pixel pitch, 27.8 mm LED pitch
- DMX control; plug-and-play daisy-chaining
- Cable feed from bottom, side or end
- IP67; 24 V DC; typically 20 W/m
- 5 m reels; custom lengths on request
Technical specifications
| Pixel pitch | 167 mm |
|---|---|
| Supply voltage | 24 V DC |
| Power consumption | 20 W/m |
| Protection rating | IP67 |
| Control | DMX |
