e:cue

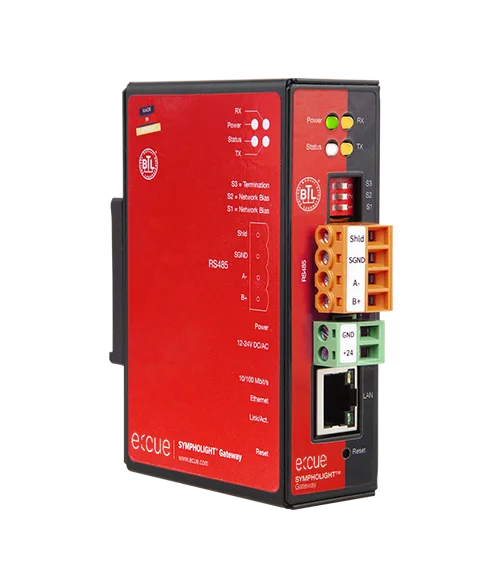

SYMPHOLIGHT Gateway BACnet
ConverterConnects SYMPHOLIGHT to a building management system via BACnet.
An MQTT-to-BACnet interface that converts data from SYMPHOLIGHT into the format of the building management system.
- Forwards brightness, colour, sensor, energy and luminaire data (RDM, DALI)
- 25, 500 or 2500 data points
- Alarms, trend logging and scheduling per data point
- Web interface; fast import of data points from Excel
- BACnet/SC encrypted transmission
Technical specifications
| Dimensions | 31 × 100 × 65 mm |
|---|---|
| Weight | 250 g |
| Power consumption | 1.7 W |
| Supply voltage | 12–24 V DC / AC |
| Protection rating | IP20 |
| Operating temperature | 0 … 40 °C |
| Interfaces | MQTT → BACnet |
