VT-ES Stadium

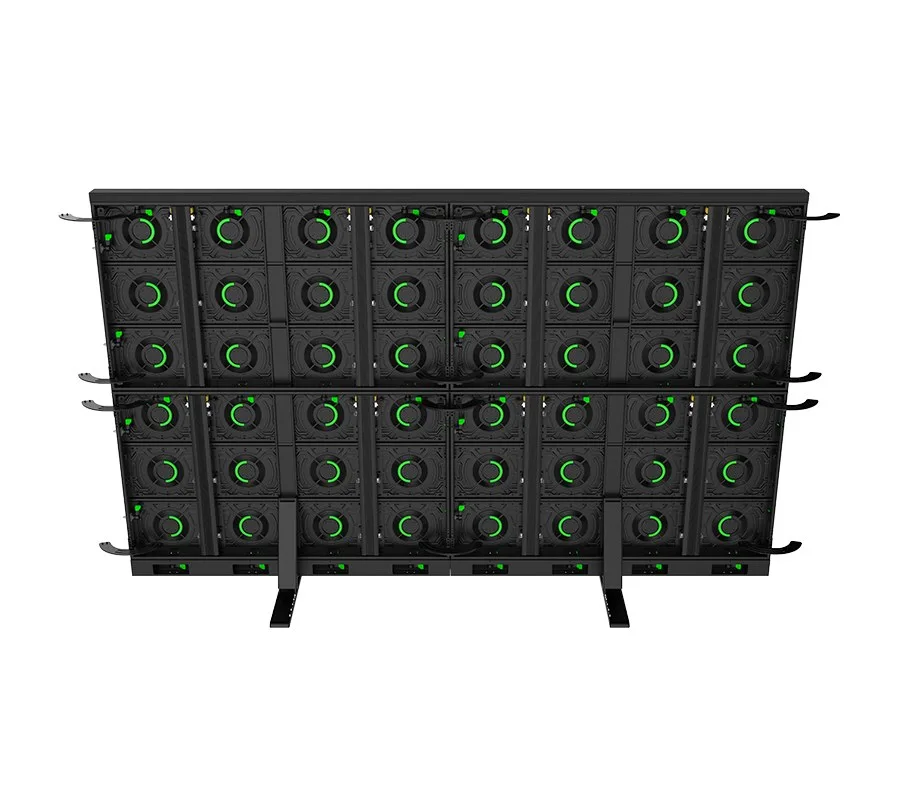

Fixed InstallationVT-ES Stadium: custom LED screen for stadiums and sports fields, P5 to P10, 6000–10000 nits, IP65.
Bright, weatherproof screens for scoreboards and perimeter advertising, readable from 6 to 200 m.
- Cabinet protection with soft cover and top padding
- IP65 on both front and rear
- High brightness, high-definition image, stable operation
- Custom design
Technical specifications
| Pixel pitch | P5 / P6.25 / P8.33 / P10 |
|---|---|
| Cabinet size | 1600 × 1000 × 98 mm |
| Weight | 43.5 kg |
| Brightness | 6000–10000 nit |
| Refresh rate | 3840–7680 Hz |
| Viewing angle (H/V) | 160° / 140° |
| Contrast | 15000:1 |
| Max. power consumption | 680 W/m² |
| Avg. power consumption | 120–200 W/m² |
| Protection rating | IP65 |
| Supply voltage | AC 90–264 V · 47–63 Hz |
| Operating temperature | −20…+60 °C |
