LED Screens
VT-T3-Plus
Fixed InstallationVT-T3-Plus: indoor LED screen for fixed installation, front maintenance, P1.25 to P3.91, 600–800 nits.

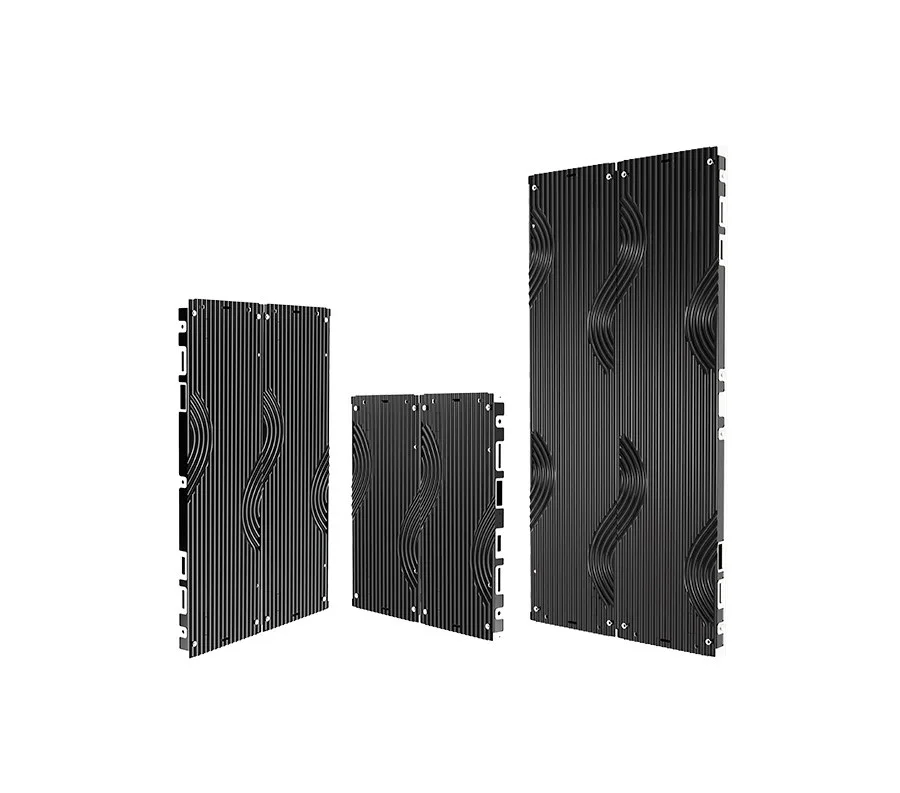

Three cabinet sizes (1000, 750 and 500 × 500 mm) fit walls, columns and corners.
- Front maintenance; simple structure, easy installation
- One-piece, high-precision die-cast aluminium housing
- Slim, clean design
- Flexible splicing: right angles and columns
- Sharp image, high brightness and contrast, rich colours
Technical specifications
| Pixel pitch | P1.25 / P1.56 / P1.95 / P2.5 / P2.604 / P2.976 / P3.91 |
|---|---|
| Cabinet size | 1000 × 500 · 750 × 500 · 500 × 500 mm |
| Depth | 33 mm |
| Brightness | 600–800 nit |
| Refresh rate | 3840–7680 Hz |
| Viewing angle (H/V) | 160° / 160° |
| Contrast | 15000:1 |
| Max. power consumption | 350 W/m² |
| Avg. power consumption | 100–200 W/m² |
| Protection rating | IP31 |
| Supply voltage | AC 90–264 V · 47–63 Hz |
| Operating temperature | −20…+60 °C |
