LED Screens

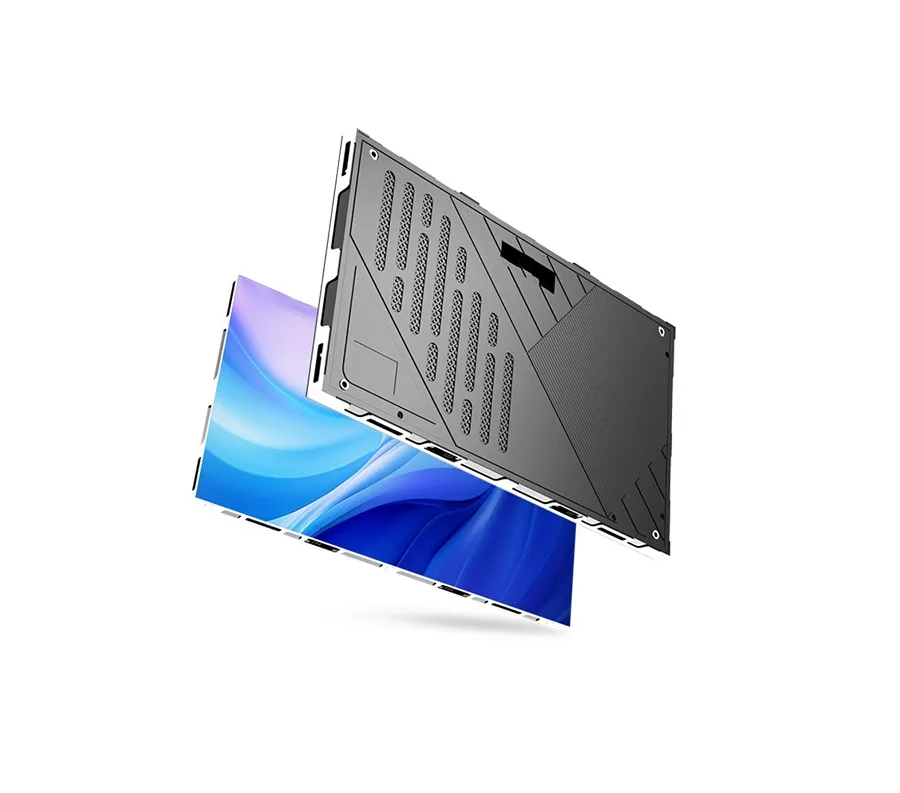

VT-X3-MIP
Fine Pixel PitchVT-X3-MIP: MIP fine-pitch indoor LED screen from P0.9375, up to 16K, contrast 15000:1, front maintenance.
Redundant power and signal keep the picture on in control rooms, studios and boardrooms.
- Fine pitch from P0.9375, up to 16K Ultra HD, contrast 15000:1
- Common-cathode energy saving: low power, long life, low failure rate
- Dual power supplies and dual receiving cards: no blackout or signal loss
- Slim and light, front maintenance, quick assembly
- Curved and right-angle splicing for many settings
Technical specifications
| Pixel pitch | P0.9375 / P1.25 / P1.56 / P1.875 |
|---|---|
| Cabinet size | 600 × 337.5 × 27.5 mm |
| Weight | 4.5 kg |
| Refresh rate | 3840 / 7680 Hz |
| Viewing angle (H/V) | 170° / 170° |
| Contrast | 15000:1 |
| Max. power consumption | 350 W/m² |
| Avg. power consumption | 100 W/m² |
| Protection rating | IP31 |
| Supply voltage | AC 90–264 V · 47–63 Hz |
| Operating temperature | −20…+60 °C |
